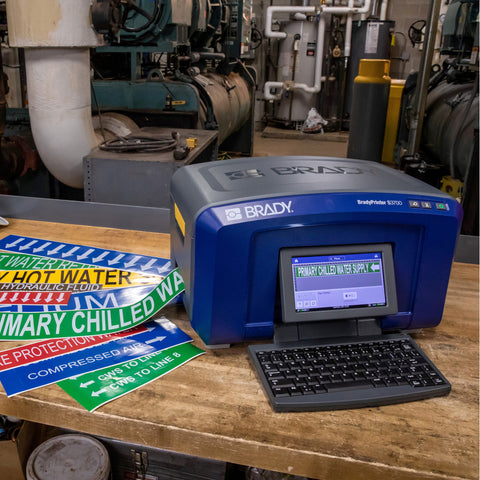

S3700 Primary Color Label and Printer Kit with Software
We'll Beat Any Price!Low Price Guarantee
Find a Lower Price and We'll Match It
- If you find a lower price on a new, in-stock item, provide us the lower price at the time of purchase and we will match or beat pricing. You can contact us by email at services@imagesupply.com or by phone at (800) 748-6535. Be sure to save the URL (web page address) of the product you found, as we'll need to certify that the lower price is presently in stock.
- We will match the other store's final price (which includes all fees and shipping costs).
- We will not match mail-in rebates or Brother Instant Rebates nor can we deduct the value of any free gift with purchase.
- The Guarantee is limited to a single price match per exact item, per customer.
- We reserve the right to limit the total quantities sold to all customers on any particular price-matched item.
- We will not match sales made in connection with "closeouts", "liquidation sales", "clearance", free offers or refurbished products.
- We reserve the right to adjust or cancel the Low Price Guarantee at any time without any prior notice.
Overview

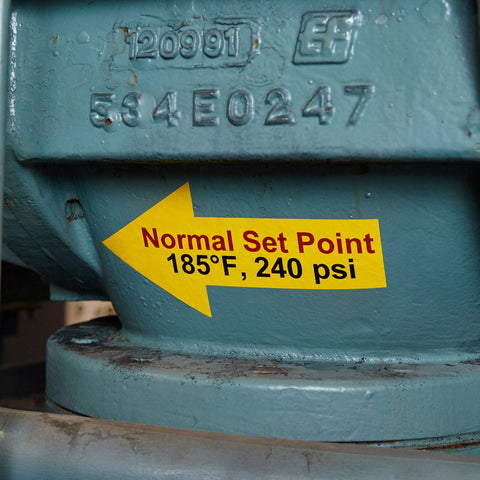

Get all the colors and capabilities you need in one convenient kit to create safety labels, Lean visuals, lockout tags, work-in-process labels and more that truly po
- Printer optimized for 1-, 2- or 4-color panel ribbons for multicolor made easy – no calibrating, no threading, no waste (single-color ribbon only in kit)
- Create shapes, arrows, letters and more with the built-in XY plotter cutter that slices straight lines, smoother curves and tighter connection points
- Get your print jobs done right in less time with 20-second ribbon and material changeovers plus up to 5-in.-per-second print speed
- Empower any user to print how they choose with time-saving onboard templates, intuitive PC labeling software and a mobile app
- Simply tap, print, go with preprogrammed onboard label templates plus 600 barcodes and symbols
- Durable, low-shrink All Weather Permanent Adhesive Vinyl Label Tape with ultra-aggressive adhesive is ideal for just about any industrial surface
- Waste less, print more with print ribbons that last up to 60% longer by operating independently of label roll
-
Kit includes the following labels and ribbons: (1) B30C-4000-595-WT, (1) B30C-4000-595-BL, (1) B30C-4000-595-GN, (1) B30C-4000-595-RD, (1) B30C-4000-595-YL, (1) B30-R10000, (1) B30-R10000-WT
Click Here For S3700 Labels
| Specifications | |
|---|---|
| Key Characteristics | |
| Product Number | 176868 |
| UPC | 888434627426 |
| UOM | Kit |
| Trade Name | BradyPrinter S3700 |
| Brand Name | Brady® |
| Dimensions | |
| Dimensions | 11 in H x 19 in W x 14.25 in D |
| Height | 11 in |
| Width | 19 in |
| Depth | 14.25 in |
| Display Size | 6.11 x 3.42 in |
| Weight | 36.9 lb |
| Material Characteristics | |
| Color | Blue, Gray |
| Product Features | |
| Application | Asset Tracking, Barcode Labeling, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Food and Beverage Process Labeling, General Identification, Hazard Communication Identification, Healthcare and Hospital Labeling, Inventory and Inspection Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Security Identification, Temperature Indicating Labeling, Warehouse Marking |
| Shipped With Battery | No |
| Built-In Label Wizards | Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS |
| Cut Options Available | Cut at the end of print jobs, Cut between labels |
| Cutter Type | XY Cutter and Auto Cutter |
| Device Connectivity | Mobile device connected, PC connected, Stand-alone |
| Display Type | Color LCD Touch Screen |
| Estimated Media Changeover Time | 20 seconds |
| Keyboard Type | QWERTZ |
| Media Sensor Type | Notch |
| Memory | 512 MB |
| Number of Symbols | 664 |
| On Screen Indicators | Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi |
| Plug Type | US |
| Power Supply Voltage | 110 - 240 V |
| Auto Shut-Off / Power Conserve | Yes |
| Print Preview Feature? | Yes |
| Special Characters Quantity | 95 |
| Units | Inches, Millimeter, Points |
| User Interface Type | Keyboard, Mobile device, PC, Touch Screen |
| Printing Specifications | |
| Automatic Label Set Up | Yes |
| Barcode Symbologies - 2D | PDF417, QR code |
| Barcode Symbologies - Linear | Code 128 Auto, Code 39, EAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A |
| Calibration Required? | No |
| Color Printing Capability | Multi-Color |
| Font Sizes | 4 - 600 pt |
| Font Styles | Arial, Arial 65, Courier New, See Brady Workstation, Tahoma, Times New Roman, Trebuchet MS, Verdana |
| Maximum Labels per Day | 600 |
| Maximum Label/Tape Width | 4 in |
| Maximum Print Speed | 5 in/s |
| Minimum Label Length | 0.5 in |
| Maximum Printed Label Length | 8.3 ft |
| Print Resolution | 300 dpi |
| Print Technology | Thermal Transfer |
| Media Sensor Adjustment | Automatic Adjustment |
| Compatibility | |
| Compatible Media | B30-, B30C-, B30EP- |
| Label Material Types | Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Transfer Tape, Vinyl, Vinyl Cloth |
| Materials Supported | Continuous, Die-cut |
| Custom Labels Available | No |
| Maximum Print Width | 4 in |
| Software Compatibility | |
| Software Compatibility | Brady Workstation, Express Labels Mobile App, Windows based driver for 3rd party software use |
| Languages Available | Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Thai, Turkish, Vietnamese |
| What's Included | |
| Software Package | Safety & Facility ID |
| Includes | (1) 4" Continuous Blue Vinyl Label (B30C-4000-595-BL), (1) 4" Continuous Green Vinyl Label (B30C-4000-595-GN), (1) 4" Continuous Red Vinyl Label (B30C-4000-595-RD), (1) 4" Continuous White Vinyl Label (B30C-4000-595-WT), (1) 4" Continuous Yellow Vinyl Label (B30C-4000-595-YL), (1) Black Ribbon Cartridge (B30-R10000), (1) Brady Workstation Design & Print Essentials Insert - Safety and Facility ID Suite, (1) Cleaning Kit (PCK-6), (1) Mouse, (1) Power Cord, (1) Quick Start Guide, (1) S3700 Safety and Facility Printer (S3700-WB), (1) USB Cord, (1) USB Flash Drive, (1) White Ribbon Cartridge (B30-R10000-WT) |
| Model & Warranty | |
| Model | S3700 |
| Warranty | 5 Years |
| Compliance | |
| California Prop 65 | No warning label required |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 14 June 2023 |
| Country of Origin | Malaysia |
| ECCN (Export Commodity Control Number) | EAR99 |
| HTS Code (Harmonized Tariff Schedule) | 8443.32.1050 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| UNSPSC | 45101519 |
