M510 Portable Industrial Label Printer with Accessories Kit
We'll Beat Any Price!Low Price Guarantee
Find a Lower Price and We'll Match It
- If you find a lower price on a new, in-stock item, provide us the lower price at the time of purchase and we will match or beat pricing. You can contact us by email at services@imagesupply.com or by phone at (800) 748-6535. Be sure to save the URL (web page address) of the product you found, as we'll need to certify that the lower price is presently in stock.
- We will match the other store's final price (which includes all fees and shipping costs).
- We will not match mail-in rebates or Brother Instant Rebates nor can we deduct the value of any free gift with purchase.
- The Guarantee is limited to a single price match per exact item, per customer.
- We reserve the right to limit the total quantities sold to all customers on any particular price-matched item.
- We will not match sales made in connection with "closeouts", "liquidation sales", "clearance", free offers or refurbished products.
- We reserve the right to adjust or cancel the Low Price Guarantee at any time without any prior notice.
Overview

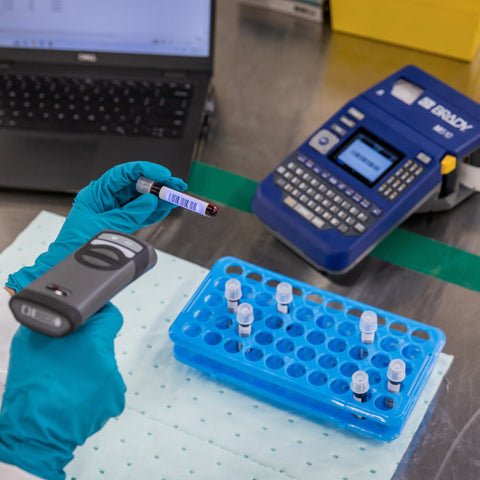

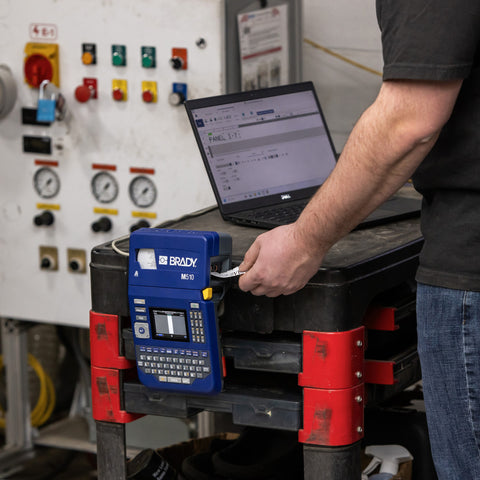

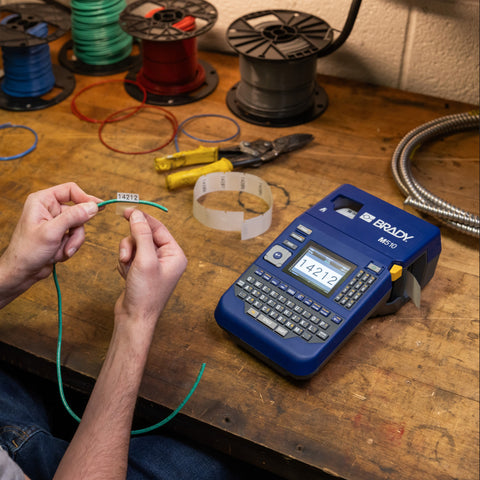

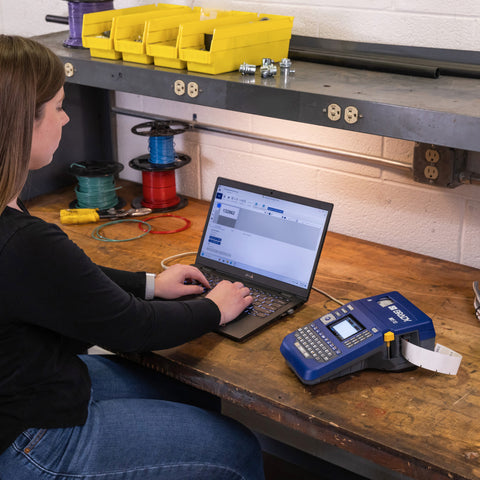

The perfect companion for your project workspace, the M510 delivers high-volume, high-quality labels day in and day out. Whether you're in a lab, field or facility, this printer works as hard as you do. Kit includes Brady Workstation Design and Print Pro — Product and Wire ID Software and a hard case.
- Create large 1.5" labels with edge-to-edge printing and a wide range of text sizes
- Print up to 1.5" per second to get work done faster
- Use the M510 for more applications with 250+ hassle-free drop-in cartridges and 26+ high-performance materials
- Enter data with more accuracy as you work between an intuitive QWERTY keypad, a separate numeric keypad or a PC
- Backlit full-color LCD graphics display for easier labeling in low-lit areas
- Durably designed to withstand 4' drops
- The rechargeable NiMH battery prints up to 1700 labels on a single charge and the high-capacity Li-ION battery prints 4400 labels on a single charge for all-day power
Click Here For M510 Label Cartridges
| Specifications | |
| Product Number | 176550 |
| UPC | 888434624326 |
| UOM | Kit |
| Trade Name | M510 |
| Brand Name | Brady® |
| Dimensions | |
| Dimensions | 3.75 in H x 5.75 in W x 10 in D |
| Height | 3.75 in |
| Width | 5.75 in |
| Depth | 10 in |
| Display Size | 2.8 in |
| Weight | 3.05 lb |
| Material Characteristics | |
| Color | Blue, Gray |
| Product Features | |
| Application | Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Lean and 5S Labeling, Safety Identification, Warehouse Marking, Wire and Cable Labeling |
| Shipped With Battery | Yes |
| Battery mAh Rating | 2700 mAh |
| Battery Weight | 0.93 lb |
| Built-In Label Wizards | 66 Block, Breaker Box, DesiStrip, Face Plate, Flags, General, Patch Panel, Terminal Block, Vial, Wire Wrap |
| Connectivity Options | USB |
| Cutter Type | Single Hand Manual Actuate, Straight Cut, With label retention |
| Device Connectivity | PC connected, Stand-alone |
| Device Drop Test & Durability | Resistant to 4-foot drops |
| Display Type | Color LCD Screen, LCD backlit graphics display |
| Keyboard Type | QWERTY |
| Memory | 512 MB RAM, 256 MB Flash |
| Number of Symbols | 480 |
| On Screen Indicators | Battery Life, Supply Remaining |
| Plug Type | US |
| Power Supply Voltage | 110 - 240 V |
| Auto Shut-Off / Power Conserve | 10 minutes, User Configurable |
| Recharge Time | 4 hours |
| Special Characters Quantity | 123 |
| User Interface Type | Full QWERTY Keyboard, PC |
| Battery Type | Rechargeable Lithium-ion Battery, Rechargeable NiMH Battery |
| Printing Specifications | |
| Barcode Symbologies - 2D | Data Matrix, QR code |
| Barcode Symbologies - Linear | Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E |
| Calibration Required? | Automated through Smart Cell |
| Color Printing Capability | Single Color |
| Font Sizes | 4 - 170 pt |
| Font Styles | Brady Alpine, Brady Fixed Width |
| Label Retention Feature | Yes |
| Maximum Labels per Day | 1000 |
| Maximum Label/Tape Width | 1.5 in |
| Maximum Print Speed | 1.50 in/s |
| Minimum Label Length | 0.240 in |
| Maximum Printed Label Length | 39.00 in |
| Print Resolution | 300 dpi |
| Print Technology | Thermal Transfer |
| Compatibility | |
| Compatible Media | M4-, M4C-, M5-, M5C- |
| Label Material Types | BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water Dissolvable Paper |
| Materials Supported | Continuous, Die-cut |
| Custom Labels Available | No |
| Maximum Print Width | 1.44 in |
| Software Compatibility | Brady Workstation |
| Languages Available | Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Italian, Japanese, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Mexico), Swedish, Turkish |
| What's Included | |
| Software Package | Basic Design Suite |
| Includes | (1) AC Adapter (M41-51-61-AC), (1) Hard Case (M510-HC), (1) Indoor/Outdoor Vinyl Label Cartridge (M5C-1500-595-WT-BK), (1) M510 Printer, (1) Magnet (M51-MAGNET), (1) Quick Start Guide, (1) Rechargeable Li-ion Battery Pack (M-LION-BATTERY), (1) Rechargeable NiMH Battery Pack (M-NIMH-BATTERY), (1) USB Cable (M-USB-103788), (1) USB Flash Drive with Driver and User Manual, (1) Utility Hook (M51-HOOK), (1) Brady Workstation Design & Print Essentials Insert |
| Other Information | |
| Model | M510 |
| Warranty | 2 Years |
| California Prop 65 | Prop 65 WARNING: Risk of cancer and reproductive harm from exposure to Lead. See www.p65warnings.ca.gov. |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 21 January 2025 |
| Country of Origin | Malaysia |
| ECCN | EAR99 |
| HTS Code | 8443.32.1050 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| UNSPSC | 45101520 |
