i7500 300 dpi Industrial Label Printer with Product and Wire ID Software
We'll Beat Any Price!Low Price Guarantee
Find a Lower Price and We'll Match It
- If you find a lower price on a new, in-stock item, provide us the lower price at the time of purchase and we will match or beat pricing. You can contact us by email at services@imagesupply.com or by phone at (800) 748-6535. Be sure to save the URL (web page address) of the product you found, as we'll need to certify that the lower price is presently in stock.
- We will match the other store's final price (which includes all fees and shipping costs).
- We will not match mail-in rebates or Brother Instant Rebates nor can we deduct the value of any free gift with purchase.
- The Guarantee is limited to a single price match per exact item, per customer.
- We reserve the right to limit the total quantities sold to all customers on any particular price-matched item.
- We will not match sales made in connection with "closeouts", "liquidation sales", "clearance", free offers or refurbished products.
- We reserve the right to adjust or cancel the Low Price Guarantee at any time without any prior notice.
Overview
High-performance 3" core label printing the way you never thought possible. Get 40-second part changeovers with no adjustments, no trial-and-error print tests and no wasted labels. LabelSense™ Technology allows the printer, Brady i75-Series materials and Brady software to communicate; automating and eliminating tedious adjustments and label-wasting tasks.
- No need to set print speed, heat, offsets, sensor mode or sensor location — i7500 does it automatically without wasteful trial-and-error print tests
- No need to calibrate wasted blank labels — i7500 detects the part size and spacing, and prints on the very first label
- i75-Series ribbons auto-center with the ink always facing the correct way; the i7500 will warn you if the ink type is a mismatch with the installed label material
- Over 4,000 stock i75-Series label parts and ribbons in 80+ materials operate in full smart-mode functionality
- Manual 3" core label rolls and 1" core ribbons will also function in full manual mode where the operator makes necessary adjustments for print settings, sensor adjustments, label calibration and correct ribbon pairing
- Brady WorkStation software (included) auto-detects the installed part for driverless one-click setup and label file creation; or use Win driver if using non-Brady software
- 300 dpi print resolution for day-to-day printing, or user can quickly field-exchange with optional 600 dpi printhead with no calibration or firmware update required
- Standard configuration ships with a Tear Bar; optional Auto Cutter accessories can be easily user-installed with four fastening screws
Click Here For i7500 Labels and Ribbons
| Product Specifications | |
|---|---|
| Product Number | 177226 |
| UPC | 888434630563 |
| UOM | Each |
| Brand & Model | |
| Trade Name | i7500 |
| Brand Name | Brady® |
| Dimensions | |
| Internal Rewind Takeup Core Size | 1.5 in |
| Overall Dimensions | 14.6 in H x 11.5 in W x 20.9 in D |
| Height | 14.6 in |
| Width | 11.5 in |
| Depth | 20.9 in |
| Core Diameter | 3 in |
| Display Size | 7 in |
| Weight | 40.0 lb |
| Material & Color | |
| Material Characteristics | Color: Blue, Gray |
| Product Features | |
| Application | Asset Tracking, Barcode Labeling, Circuit Board Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Solar Panel Labeling, Tamper Indicating Labels, Warehouse Marking, Wire and Cable Labeling |
| Connectivity Options | Bluetooth, Ethernet, USB, Wi-Fi |
| Cut Options Available | Auto Cutter accessory available, Perforation Cutter accessory available |
| Cutter Type | None |
| Device Connectivity | Mobile device connected, PC connected & Stand-alone |
| Display Type | Color LCD Touch Screen |
| Estimated Media Changeover Time | 40 seconds |
| Keyboard Type | None |
| Media Sensor Type | Black Mark, Continuous, Gap Sensor, Notch |
| Memory | 512 MB RAM, 195 MB IFFS Flash |
| On Screen Indicators | Bluetooth Status, Data Reception, Digital Clock, Error Messaging, Ethernet Status, i75 Smart material / Manual Material, Label dimensions, Print Job Preview, Ready State, Ribbon and label part number recognition, Supply Remaining, USB Connection, User-defined Printer Name, WiFi |
| Plug Type | US |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz |
| Attachment Type | None |
| Auto Shut-Off / Power Conserve | Yes |
| Print Preview Feature? | Yes |
| Units | Inches, Millimeter, Points |
| User Interface Type | Touchscreen and PC |
| Battery Type | Internal, not removable |
| Operating System | Windows® 10, Windows® 11, Windows® 8.1, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 |
| Type | Printer |
| Printing & Barcode Specifications | |
| Automatic Label Set Up | Yes |
| Barcode Symbologies - 2D | Aztec, Data Matrix, GS1 DataMatrix, MicroPDF417, PDF417, QR code |
| Barcode Symbologies - Linear | Codabar, Code 128, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Code 93 Full ASCII, EAN-13, EAN-13 Extension 2, EAN-13 Extension 5, EAN-8, EAN-8 Extension 2, EAN-8 Extension 5, GS1-128, HIBC, Industrial 2 of 5, ITF-14, JAN-13, JAN-13 Extension 2, JAN-13 Extension 5, JAN-8, More through Brady WorkStation, More through software, UPC-A, UPC-E |
| Media & Compatibility | |
| Calibration Required? | Automated with i75-Series Consumables |
| Color Printing Capability | Single Color |
| Font Styles | Arial, Brady Bold Cond, Noto Sans, Noto Sans Thai, See Brady Workstation, Times New Roman, TrueType fonts storable to printer |
| Maximum Labels per Day | 7000 |
| Maximum Label/Tape Width | 4.25 in |
| Maximum Print Speed | 12 in/s |
| Minimum Label Length | 0.125 in |
| Maximum Printed Label Length | 60 in |
| Print Resolution | 300 dpi |
| Print Technology | Direct Thermal, Thermal Transfer |
| Programming Language | ZPL Emulator |
| Media Sensor Adjustment | Not Required |
| Compatible Media | 2FR-, 2HT-, 2HX-, 2LSZH-, 3FR-, 3HT-, 3PS-, APL-, DR-, DT-, FR-, HCM-, HSNX-, HT-, HX-, i75-, LSZH-, PS-, THT-, THTC-, THTCLP-, THTCLT, THTEL-, THTEP-, THTFP-, THTFT-, THTHD-, THTPNP-, THTRDS-, THTRO-, THTTL-, XTHT- |
| Label Material Types | Diesel-resistant Heat-shrink Polyolefin Sleeve, Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallic, Non-metal Polyester, Metallized Polyester, Nylon Cloth, Paper, Polyester, Polyethylene Foam Laminate Polyester, Polyethylene Tag, Polyimide, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth |
| Materials Supported | Bulk, Continuous, Custom, Die-cut |
| Custom Labels Available | Yes |
| Maximum Print Width | 4.16 in |
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use |
| Languages Available | |
| Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (Canada), German, Hungarian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Spanish (universal), Thai, Turkish, Vietnamese | |
| Included Items | |
| What's Included | Software Package: Product & Wire ID |

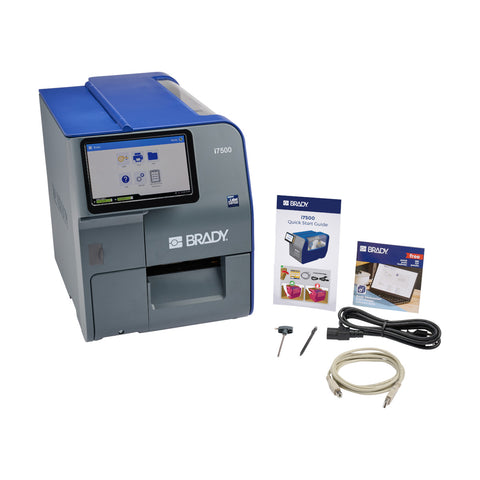

| Includes | (1) Brady Workstation Design & Print Pro Insert - Product and Wire ID Suite, (1) i7500 Printer 300dpi, (1) Power cord (US plug), (1) QuickStart Guide, (1) Serrated tear bar (installed), (1) T-20 wrench (177738), (1) USB cable |
| Model & Warranty | |
| Model | i7500 |
| Warranty | 5 Years |
| Compliance & Regulations | |
| California Prop 65 | Prop 65 WARNING: Risk of cancer from exposure to Nickel and reproductive harm from exposure to Bisphenol A. See www.p65warnings.ca.gov. |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 25 June 2025 |
| Country of Origin | Malaysia |
| ECCN | EAR99 |
| HTS Code | 8443.32.1050 |
| Patent Number(s) | Patent Pending |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| UNSPSC | 45101519 |
