Brother PT-E800W Portable Industrial Label Maker

MRSP: $ 559.95
  • $ 529.95
  • Save $ 30.00

In stock ships today

Label Deals We'll Beat Any Price!
We guarantee the lowest prices, call 800-748-6535 or see details →

Sku: PT-E800W   Type: Label Maker   Brand: Brother

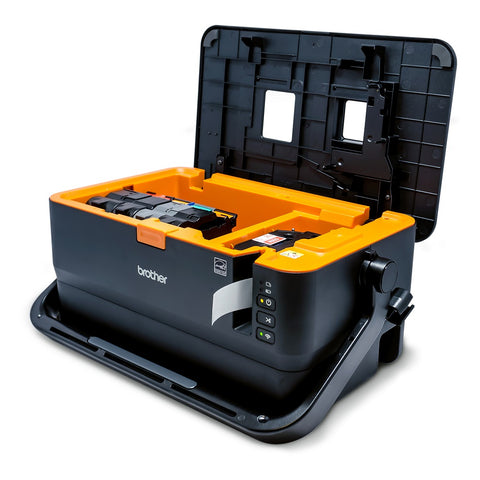

Brother PT-E800W Portable Industrial Label Maker

The PT-E800W is an on-demand wireless transportable desktop labeling system, that comes with a detachable full-size touch type keyboard and large backlit LCD display, Li-ion battery (included), full-length tape, label design/printing software and a built-in carrying case with handle. This easy to carry labeling system produces wide, premium quality laminated labels at 360dpi print resolution, up to 32mm print height on 36mm tape, and features a built-in automatic cutter that trims a continuous "tape" to virtually any length, one at a time or as a strip of pre-cut labels. Brother laminated labels can withstand abrasion, fading, extreme temperatures, chemicals and moisture.

Includes: PT-E800W, (1) 1 1/2" (36mm) Black/White Tape, Li-ion Battery, USB cable, AC Adapter, and manual.

Tape Sizes: 9/64", 1/4", 3/8", 1/2", 3/4", 1" & 1 1/2" TZe Tapes

Shrink Tube Sizes: 5mm, 8mm, 11mm, 17mm & 23mm HSe Shrink Tube

View Product Brochure

  • Extra-wide, multi-line labels suit a variety of industrial uses, including maintenance/repair/operations (MRO) signage
  • WiFi/Mobile Device & PC Connectivity - print from a mobile device or from a PC with Brother mobile labeling apps: Mobile Cable Label Tool, Mobile Transfer Express and iPrint&Label
  • Features 14 fonts, 99 frames, 465 symbols (inc. electrical symbols)
  • Barcode printing - 9 types
  • Prints labels from 3.5mm up to extra wide 36mm and up to 17 lines per label
  • Cable Label Wizard includes inverted label templates
  • Links to Excel for database printing
  • Flexible power source - works with AC adapter or Li-ion Battery Pack (both included)
Hardware Features
Model Type Desktop, Portable
Tape Family TZ, TZe, TZeS, TZeFX, HSe
Tape Sizes 6mm, 9mm, 12mm, 18mm, 24mm, 36mm
Tape Length 26.2'
Tape Technology Thermal Transfer
Tape Types Standard Laminated, Flexible ID, Extra Strength Adhesive , Non-Laminated Iron-on Fabric, Acid Free, Shrink Tube
LCD Display 15 char x 4 lines, graphical, backlit
Backlight Yes
Maximum Print Resolution 360 dpi
Maximum Print Speed 60 mm / sec.
Keyboard QWERTY, removable
Cutter Auto (full + crack and peel)
Batteries PA-BT-4000LI Li-ion Battery Pack (included)
AC Adapter Included
Handle Yes
Interface USB, WiFi
Mobile Device Printing App‡ Brother Mobile Cable Label Tool, Brother Mobile Transfer Express, Brother iPrint&Label free app download for wireless printing from your Apple® or Android™ mobile device
Mobile Device Compatibility‡ Yes
Software Features
Number of Fonts 10
Fonts Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
Font Sizes 4 - 90 pt
Number of Font Styles 10
Built-in Symbols 465
Font Styles Normal, Outline, Bold, Solid, Shadow, Stripe, Outline Shadow, Italic, Italic Bold, Italic Outline, Italic Solid, Italic Shadow, Italic Outline Shadow, Italic Stripe
Max. Print Height 32.0mm
Maximum Print Lines 17
Multi-Block Yes
Label Length Setting Yes
Auto Incrementation Alpha / numeric
Horizontal Alignment Left, Center, Right, Justified
Vertical Printing Yes
Mirror Printing Yes
Rotate Printing Yes
Text Insert Yes
Text Framing/Fill Pattern Yes
Multi-copy Print Up to 99 copies
Memory Up to 99 labels
Date/Time Stamp Yes
Download data to unit Yes
Auto Formats 32 (including block layouts)
Database Printing via Excel
Barcoding 9 types
Barcodes (Stand-alone mode) CODE39, ITF 2/5, EAN13, EAN8, UPC-A, UPC-E, CODABAR, GS1-128 (UCC/EAN128), CODE128
Barcodes (connected to computer) Code 39, UPC-A, UPC-E, 1-2/5, EAN-8, EAN-13, EAN-128, Code 128, Codabar, ISBN-2, ISBN-5, Laser Bar-code, Postnet, QR Code
(PC) Connectivity USB, WiFi
(Mac) Connectivity USB, WiFi
Operating System Windows® 2000, Windows® XP, Windows Vista®, Windows® 7; Windows® 8/8.1; Windows® 10; Mac OS X 10.9.x, 10.10.x, 10.11.x, macOS 10.12x
Carton Contents
Included Items One 1.4" (36mm) x 26.2' (8m) Black on White laminated "TZe" tape, Li-ion Battery Pack, USB cable, AC adapter (AD9100ESA)
Rechargeable Battery PA-BT-4000LI Li-ion Battery Pack (included)
Model Details
Housing Dimensions 12.2" x 7.5" x 6.1"
Housing Weight 7.8 lbs
Housing Color Black/Orange
Warranty 2 year limited
UPC Code 012502645597
